Activated Carbon Products
Coconut Shell Activated Carbon
Quality Products for Every Application
Activated Carbons enjoy an extremely wide utilisation across many industries globally. Historically, positioned as a ‘Private Label’ manufacturer, Ecogen Bioresource has often worked in the background – carrying out development and manufacturing work in order to deliver our products for use worldwide; relying on the strength of our quality, pricing and our dedication to product delivery.
This work has enabled our technical teams to prepare products that are designed for key applications. Learning from our experience in manufacturing optimised products, we are able to produce Activated Carbons that go above and beyond the conventional materials available within the market without the premium costs typically associated with high performance carbons.

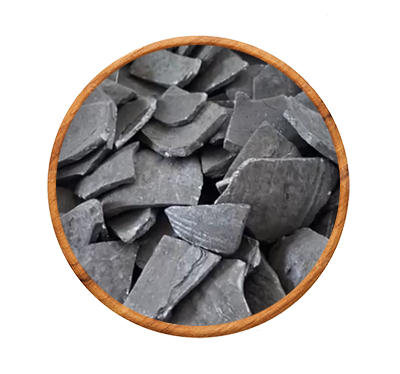

CHARCOAL

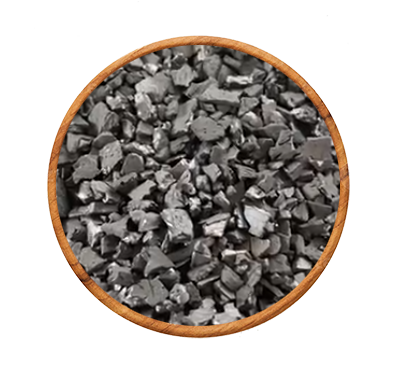

EX KILN

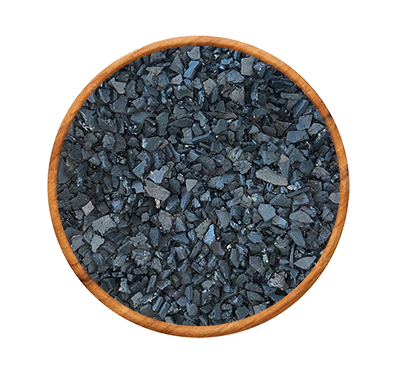

4 x 8
60 CTC

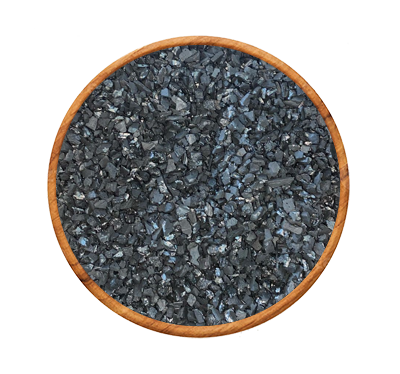

6 x 12
55 CTC

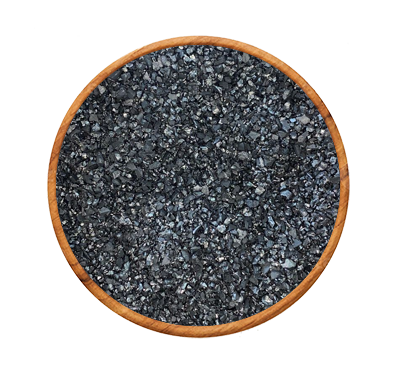

8 x 30
60 CTC

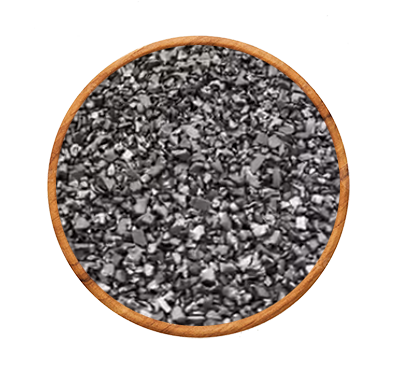

12 x 30
55 CTC

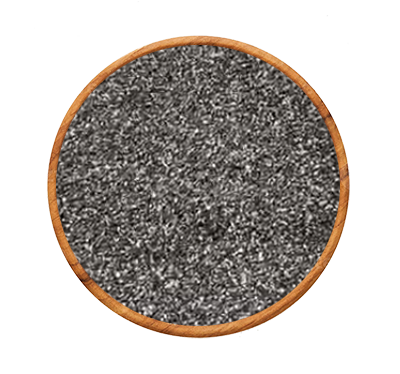

30 x 60
60 CTC

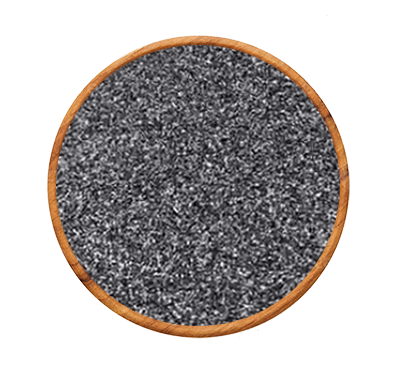

-50
60 CTC

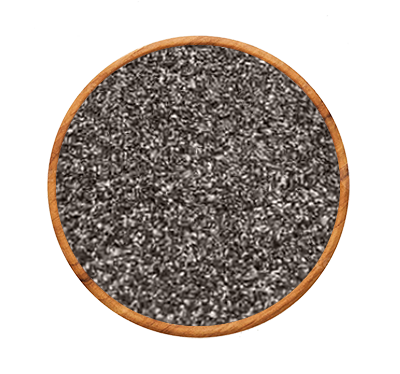

40 x 140
1100 IV

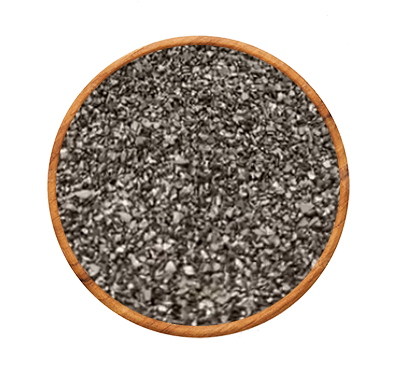

20 x 50
1100 IVSpecification
| Coconut Shell Activated Carbon | 4 x 8 | Method | ||||
|---|---|---|---|---|---|---|
| +4 Mesh (+4.75 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -8 Mesh (-2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 900 Min. | 950 Min. | 1050 Min. | 1100 Min. | 1250 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 510 | 490 | 480 | 460 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| pH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon | 6 x 12 | Method | ||||
|---|---|---|---|---|---|---|
| +6 Mesh (+3.35 mm) | 3% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -12 Mesh (-1.70 mm) | 2% Max. | 2% Max. | 2% Max. | 2% Max. | 2% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 530 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 98% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2866 |
| pH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon | 8 x 30 | Method | ||||
|---|---|---|---|---|---|---|
| +8 Mesh (+2.36 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 440 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| pH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon | 12 x 30 | Method | ||||
|---|---|---|---|---|---|---|
| +12 Mesh (+1.7 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| -30 Mesh (-0.600 mm) | 3% Max. | 3% Max. | 3% Max. | 3% Max. | 3% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 | 1000 | 1100 | 1150 | 1300 | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 500 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| pH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut shell activated carbon | 30 x 60 | Method | ||||
|---|---|---|---|---|---|---|
| +30 Mesh (+595 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -60 Mesh (-250 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 520 | 500 | 480 | 430 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2866 |
| pH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
| Coconut Shell Activated Carbon | 20 x 50 | Method | ||||
|---|---|---|---|---|---|---|
| +20 Mesh (+841 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| -50 Mesh (-297 Micron) | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2862 |
| Iodine Value (Minimum) | 950 Min. | 1000 Min. | 1100 Min. | 1150 Min. | 1300 Min. | ASTM D4607 |
| CTC Value in % (Minimum) | 45 | 50 | 55 | 60 | 75 | ASTM D3467 |
| Apparent Density in Kg/m3 (Minim.) | 540 | 530 | 520 | 480 | 450 | ASTM D2854 |
| Surface Area | NA | NA | NA | NA | NA | |
| Ball Pan Hardness | 98% Min. | 98% Min. | 98% Min. | 98% Min. | 95% Min. | ASTM D3802 |
| Moisture | 5% Max. | 5% Max. | 5% Max. | 5% Max. | 5% Max. | ASTM D2867 |
| Ash | 4% Max. | 4% Max. | 4% Max. | 4% Max. | 4% Max. | ASTM D2866 |
| pH | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | 9 – 11 | ASTM D3838 |
